■■; over 50% of overarching load cap. (720W / 7.5A); ■■; over 25% of overarching load cap. (360W / 3.75A); ■■; over 18.75% of overarching load cap. (270W / 2.8A); ■■; over 10% of overarching load cap. (144W / 1.5A); ■■; below 6.25% of overarching load cap. (90W / 900mA)

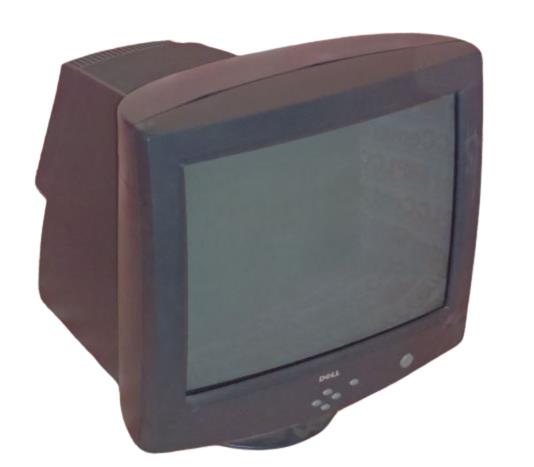

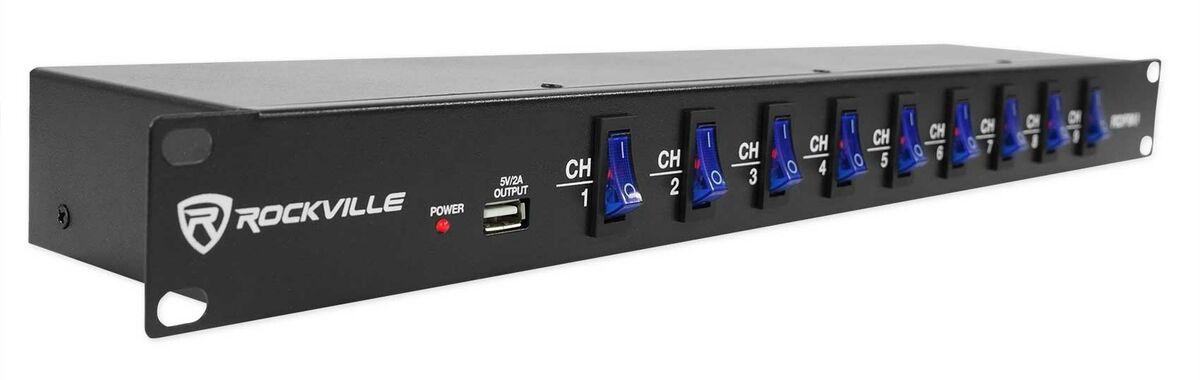

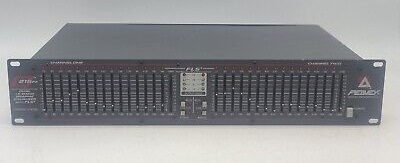

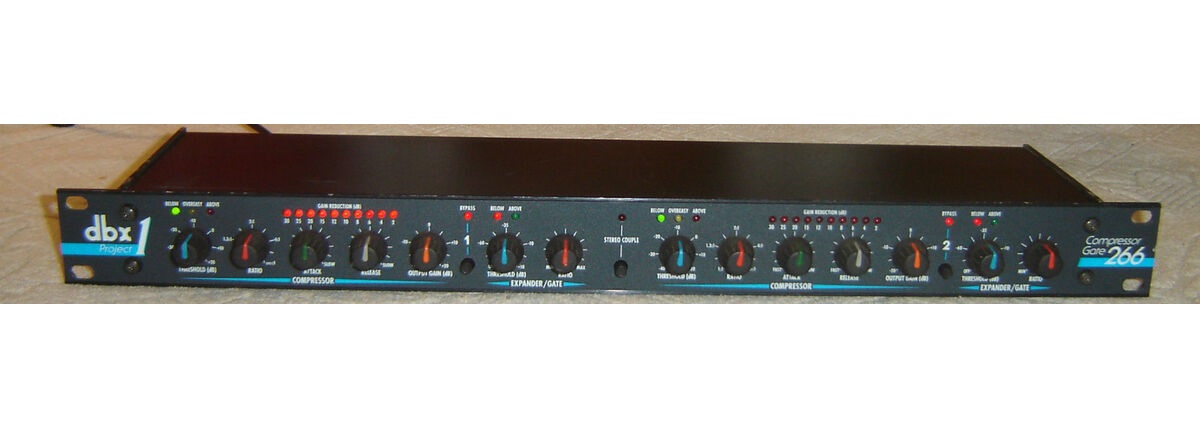

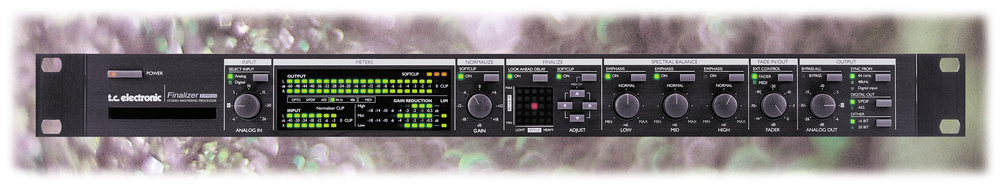

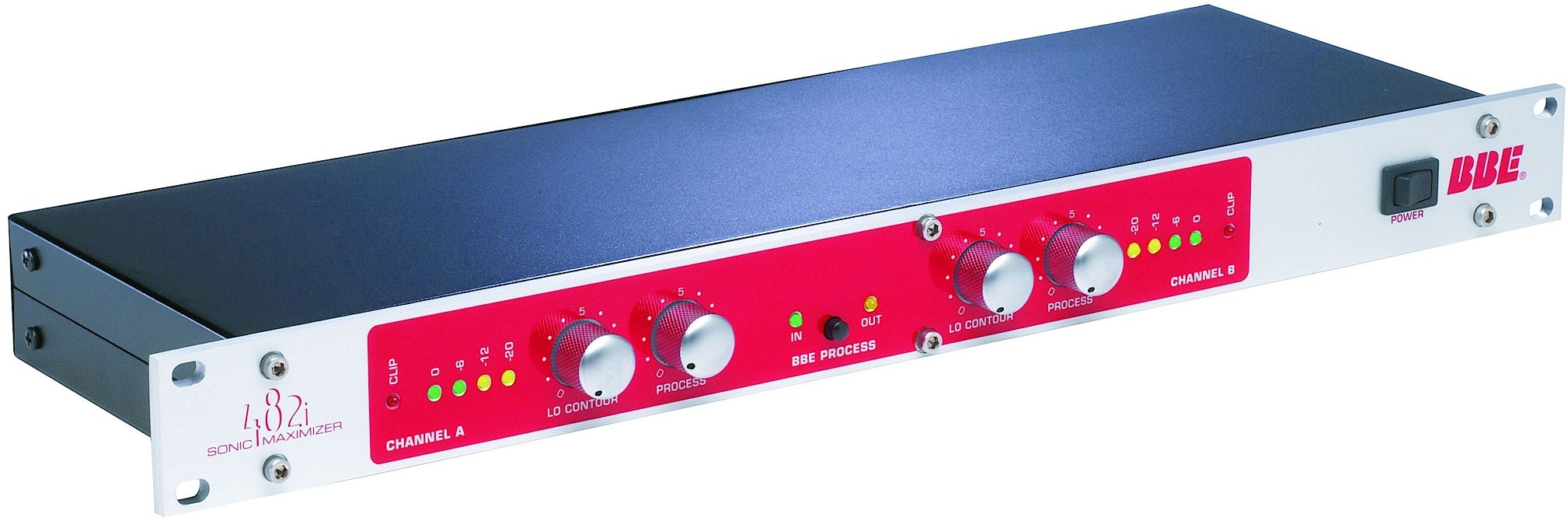

^7~1; <500W ■Rockville RDF9U;

(a=300)W+33W+15W+9W+'20W'+3W+30W+'60W'= 90W/'170W'+a=(470W)

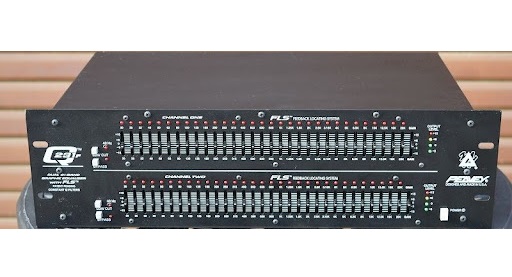

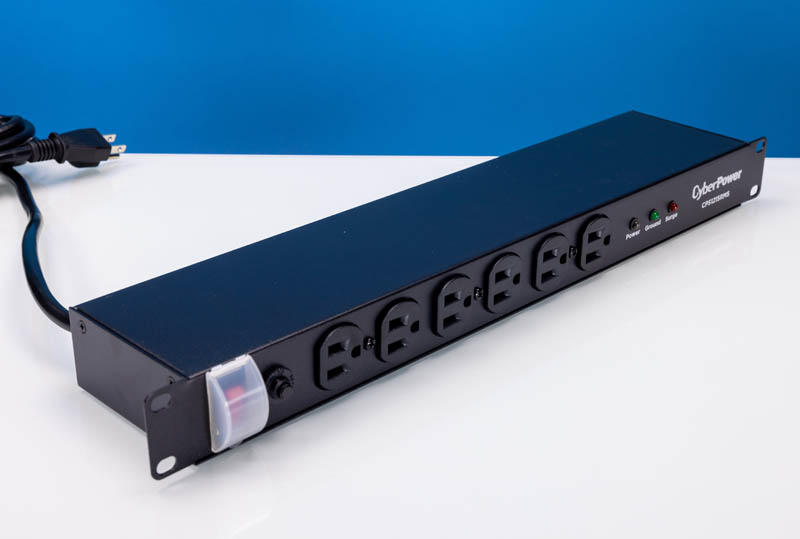

^5~11; <200W ■CyberPower CPS-1215RMS;

12W+12W+15W+15W+54W+20W+24W= 152W







^7~2; <300W ■(a)Livewire PC900 (1);

(b=123)W+35W+12W+9W+24W+50W+20W+'20W'= 150W/'170W'+b=(293W)

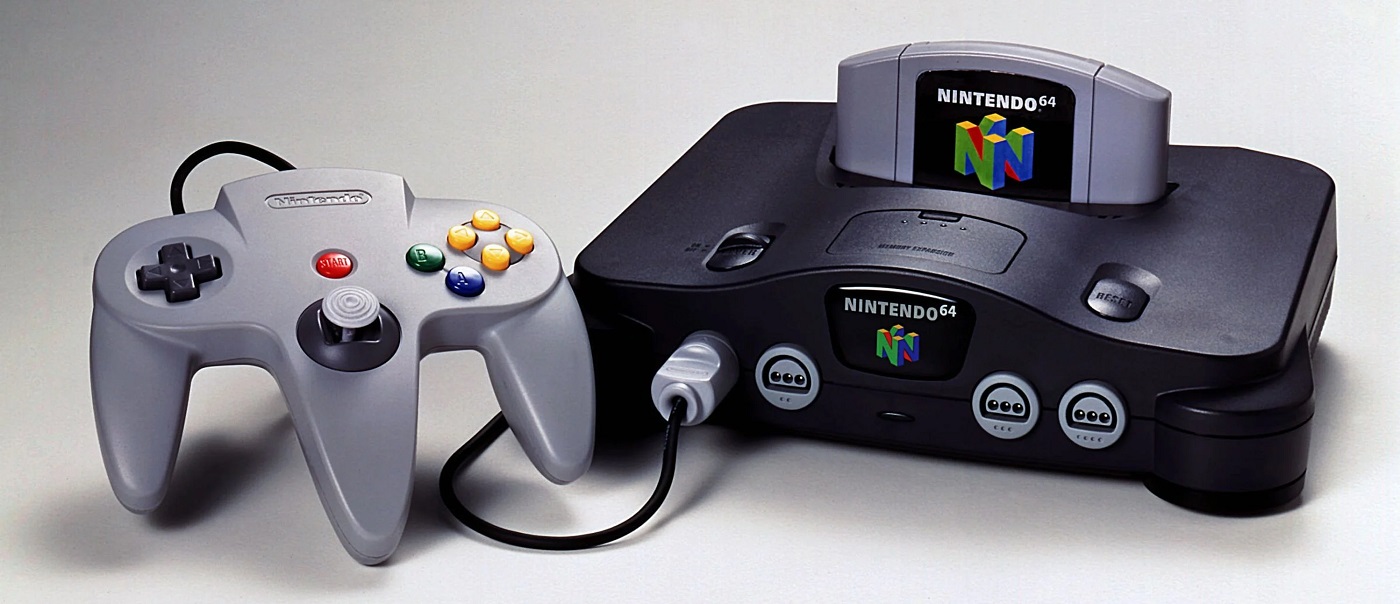

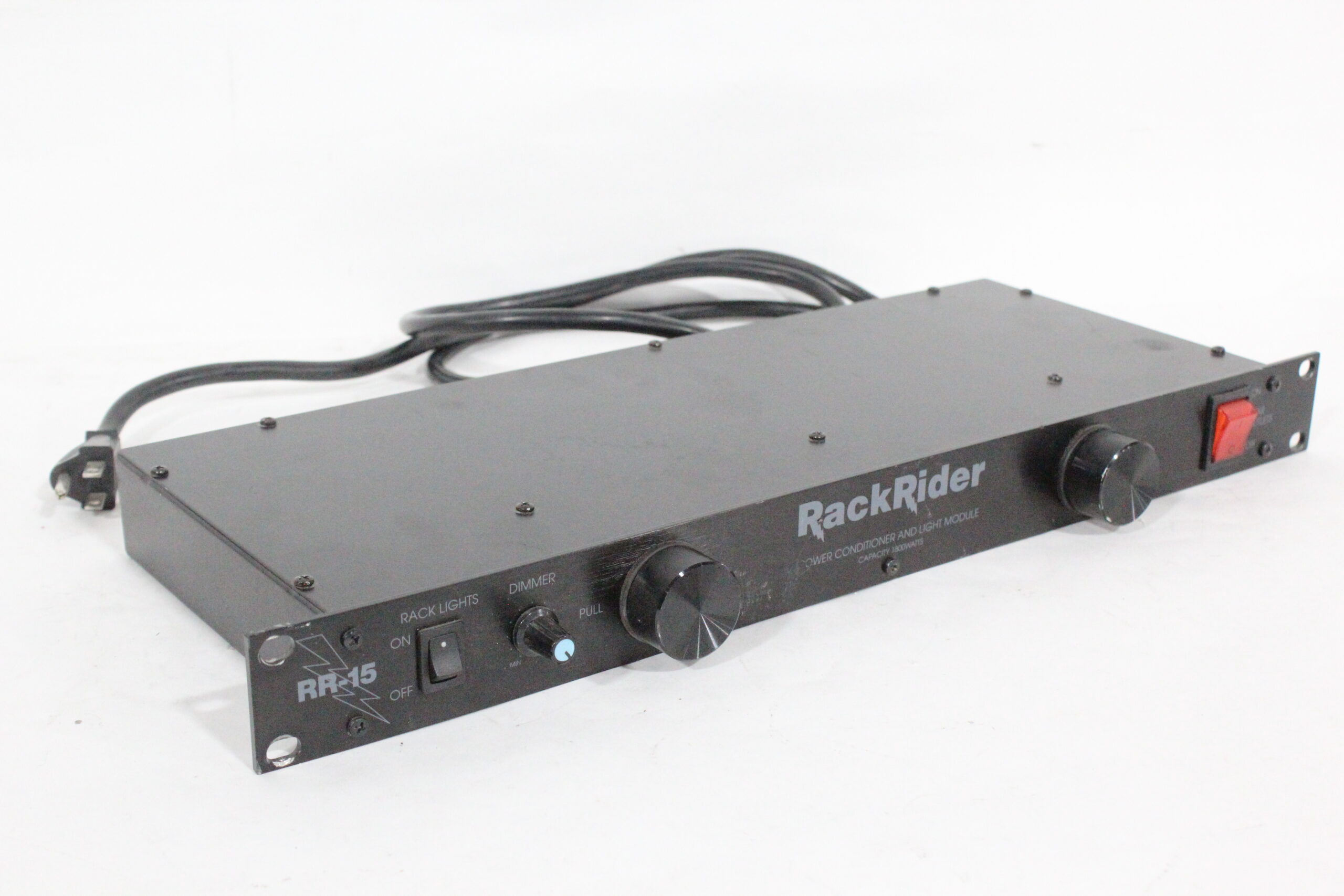

^7~10; <200W ■(b)RackRider RR-15;

30W+13W+13W+'20W'+30W+5W+12W= 103W/'123W'



N/A16



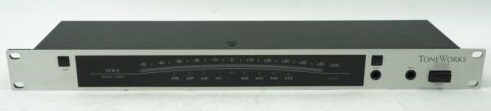

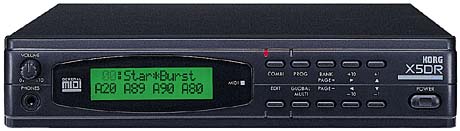

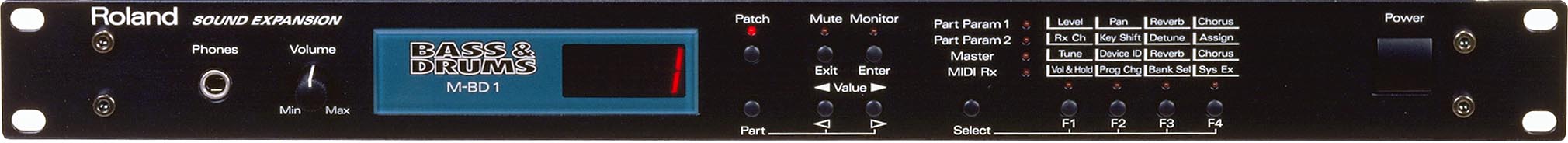

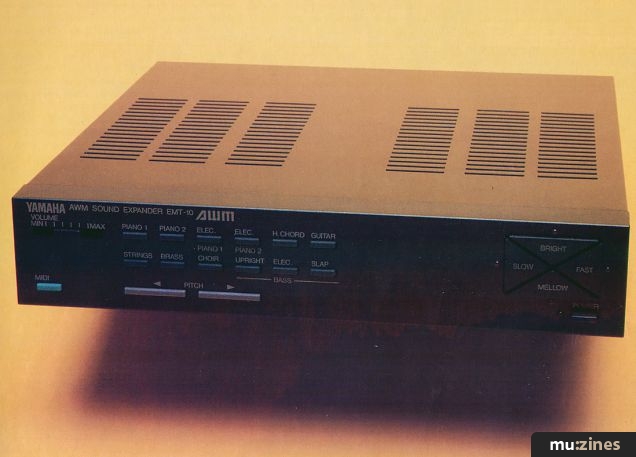

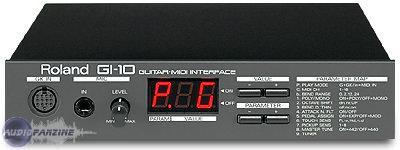

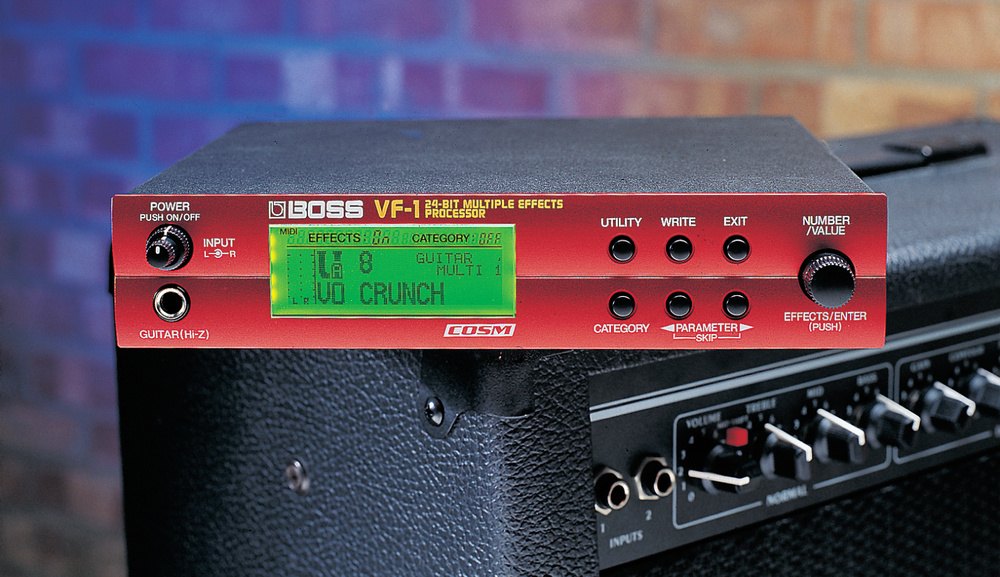

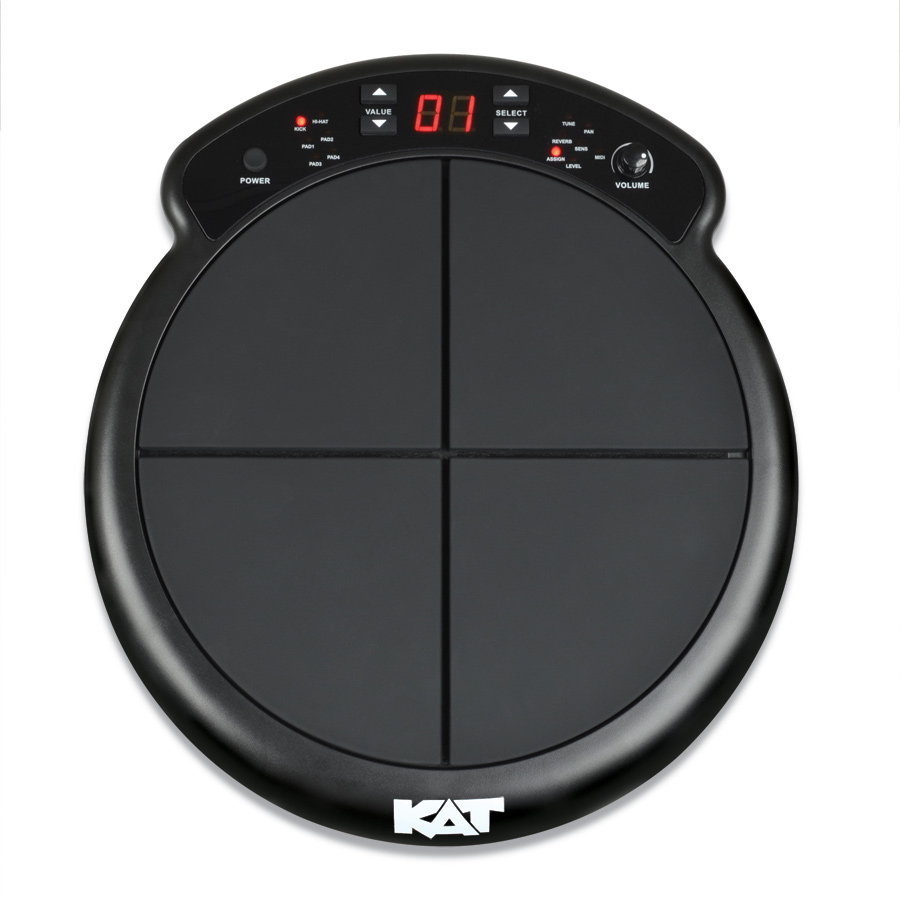

^5~3; <200W ■Livewire PC900 (2);  [SYNTHS]

10W+10W+20W+8W+12W+15W+20W+20W+4W= 119W



N/A21

^7~4; <100W ■(c)Livewire PC900 (3);

18W+10W+'25W'+12W+3W+3W= 46W/'71W'

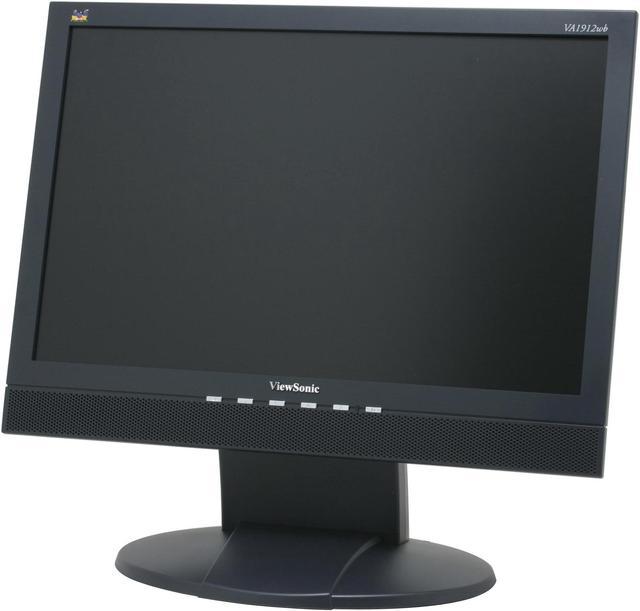

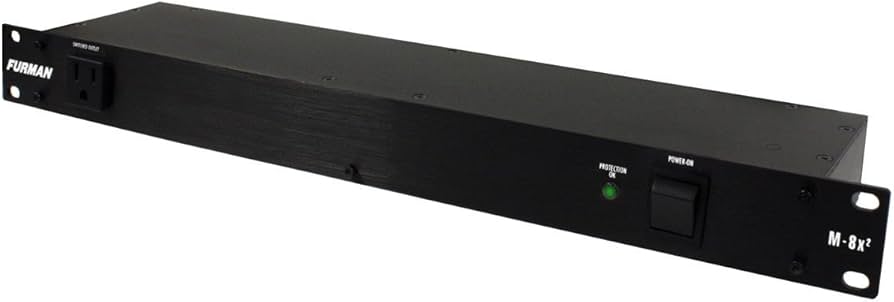

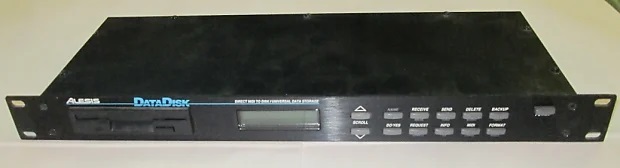

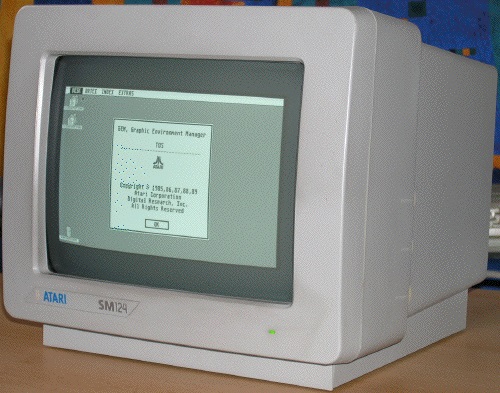

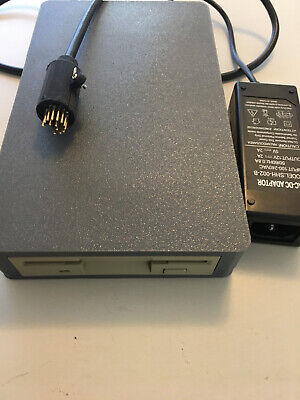

^7~8; <200W ■Furman M-8x2;  [SAMPLERS]

(c=71)W+35W+'32W'+20W+15W+5W+5W= 80W/'112W'+c=(183W)

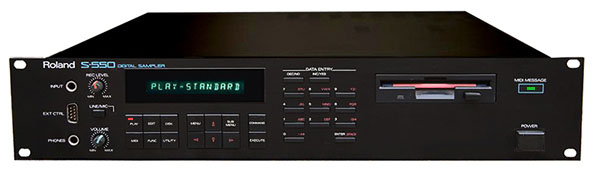

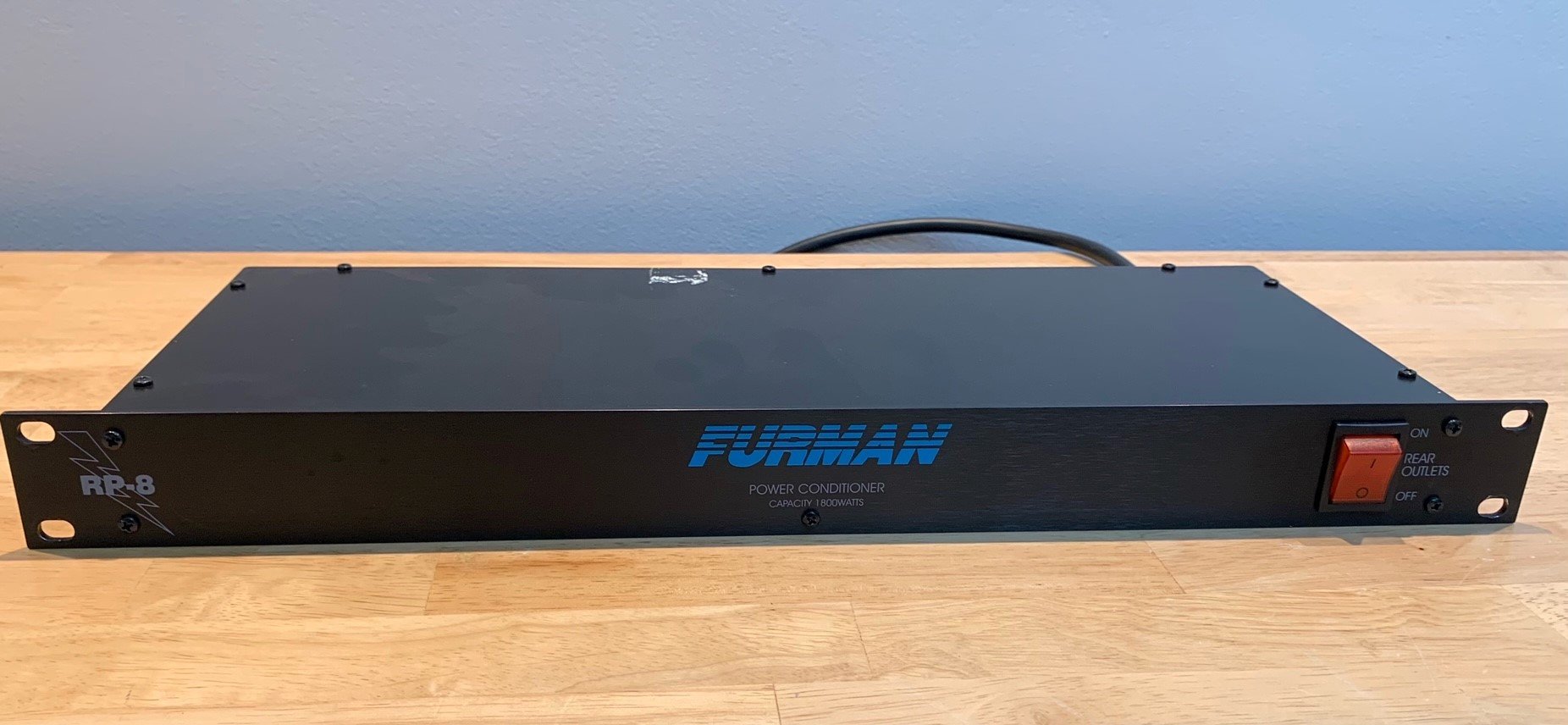

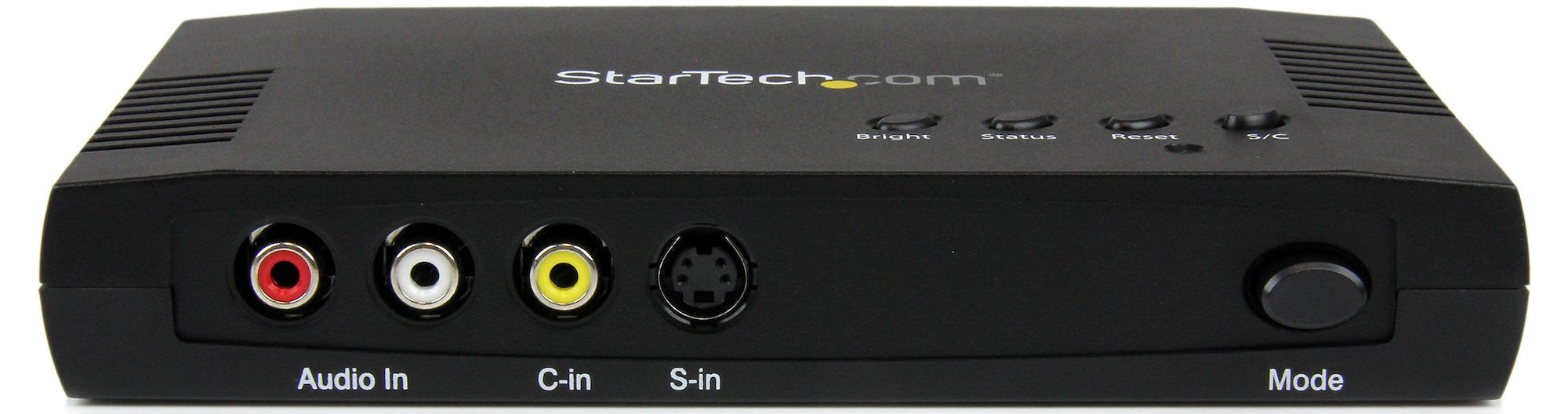

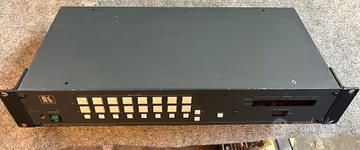

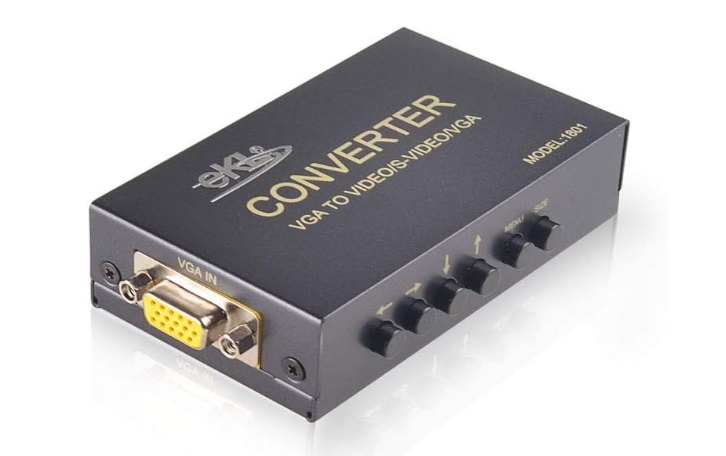

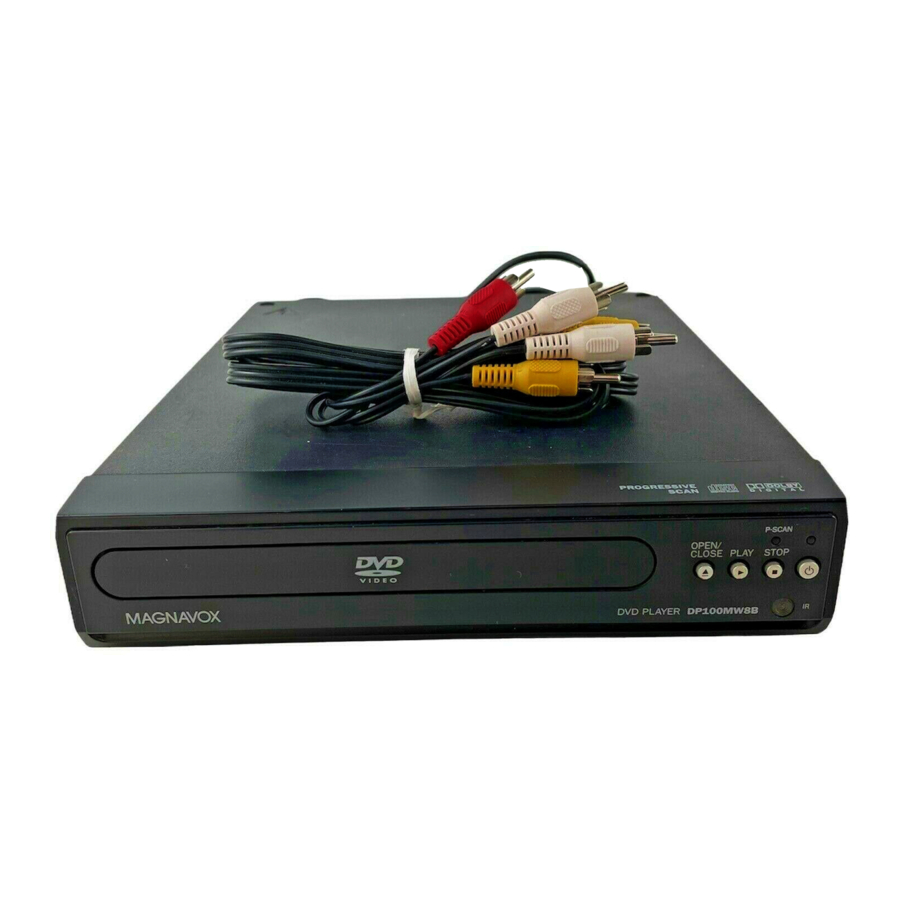

^5~9; <100W ■(d)Furman RP-8;  [AV]

5W+18W+11W+7W+10W+9W= 60W

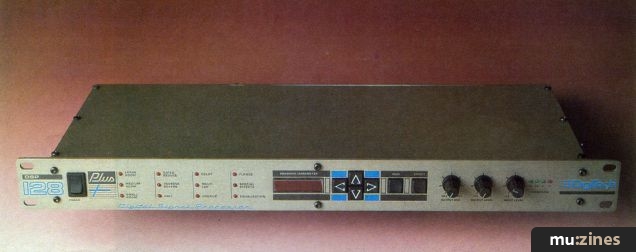

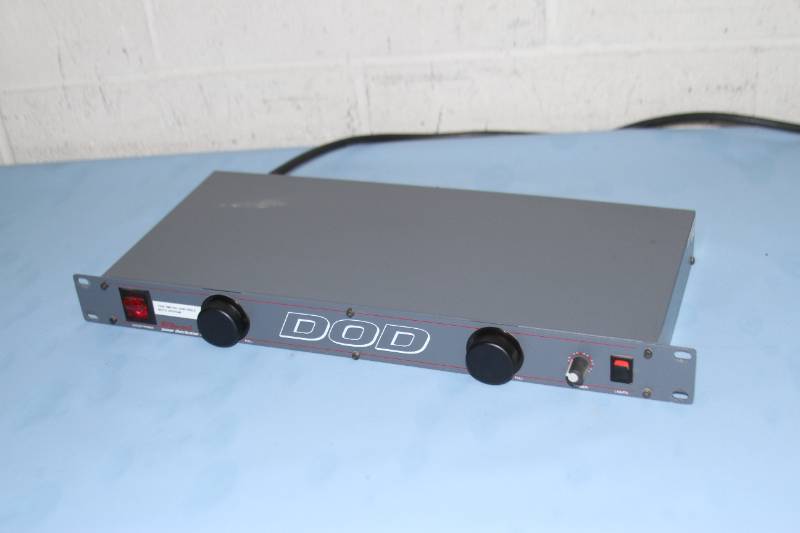

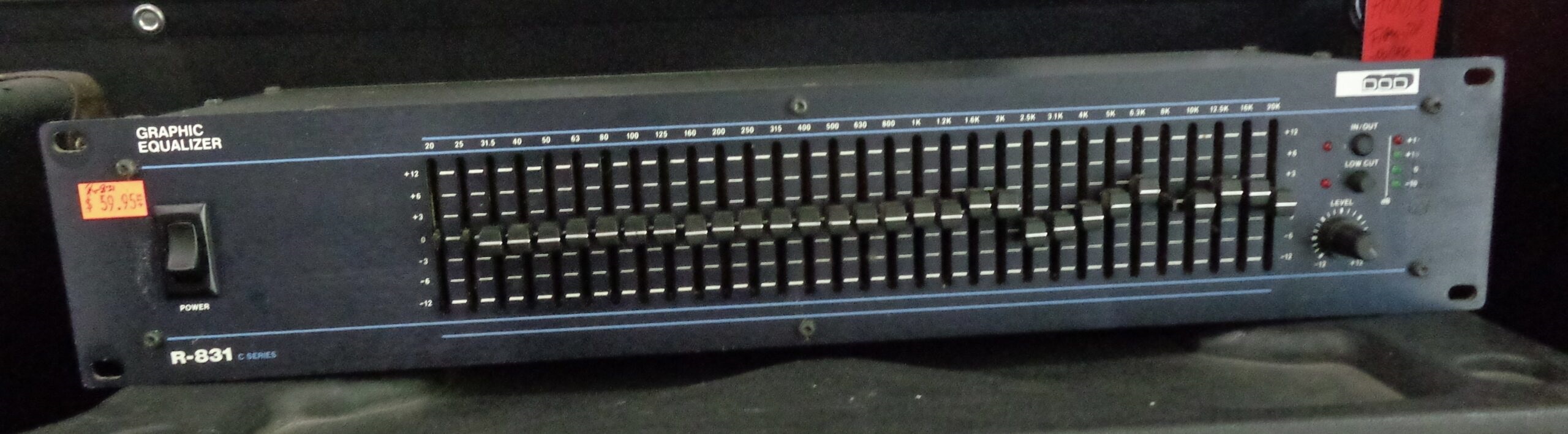

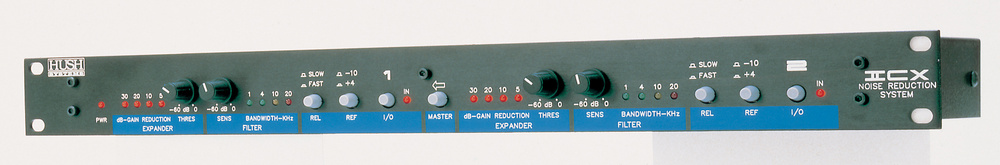

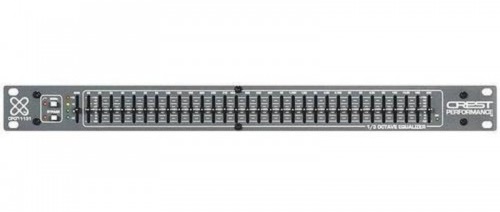

^7~6; <1400W ■DOD 828;

15W+50W+100W+20W+1150W= 1337W



N/A

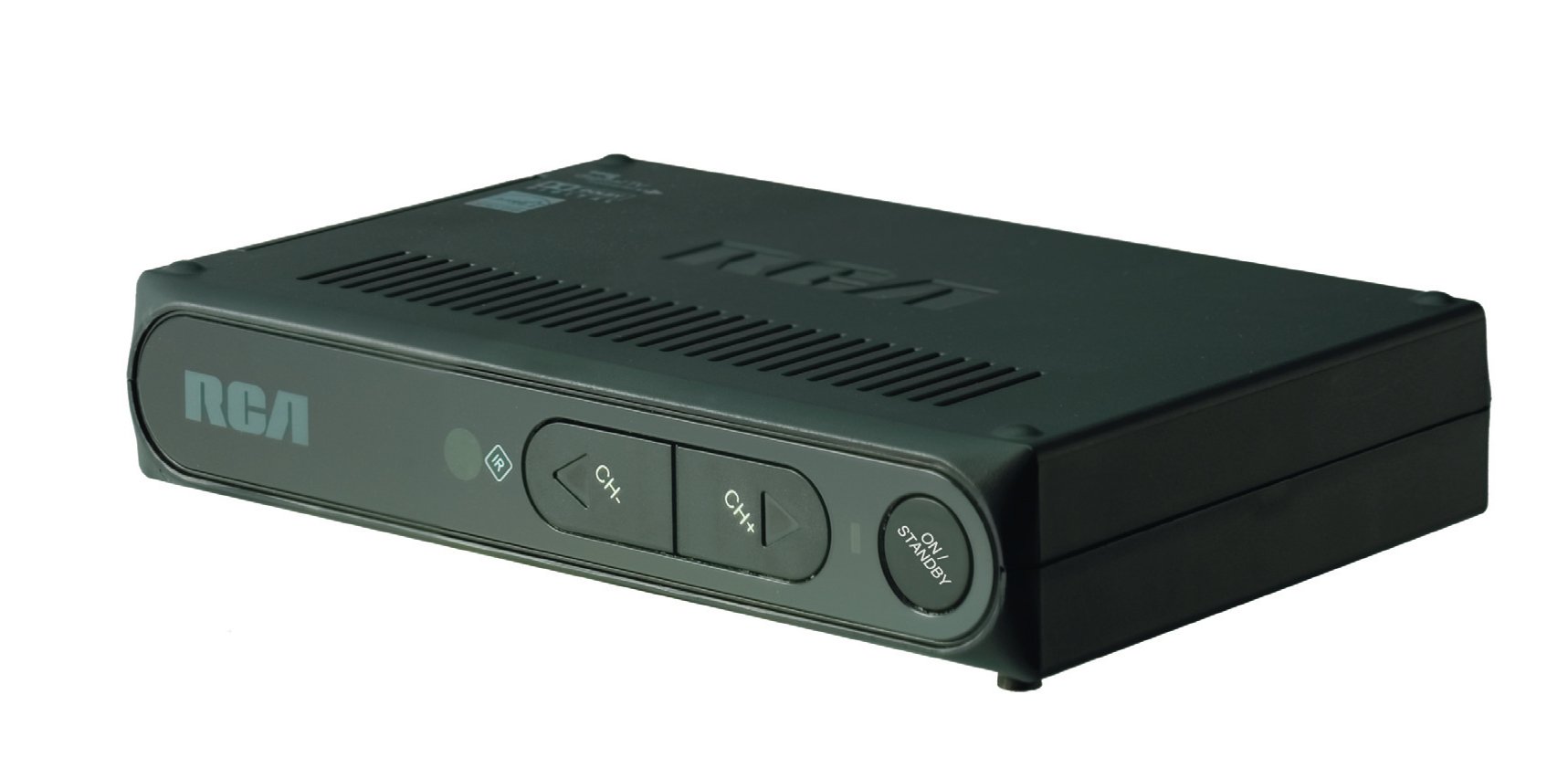

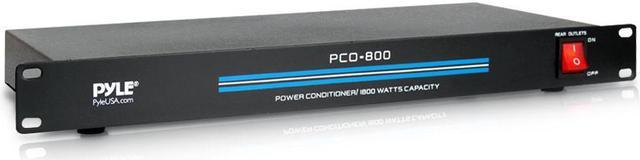

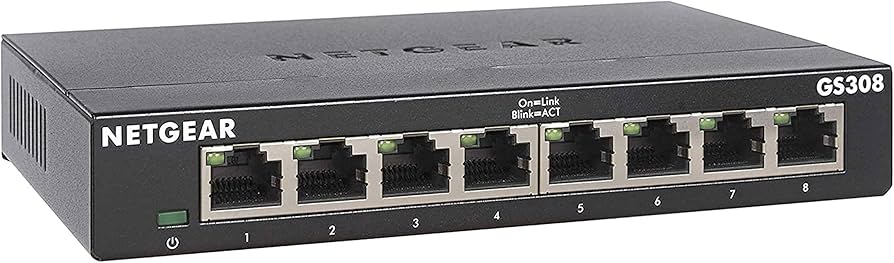

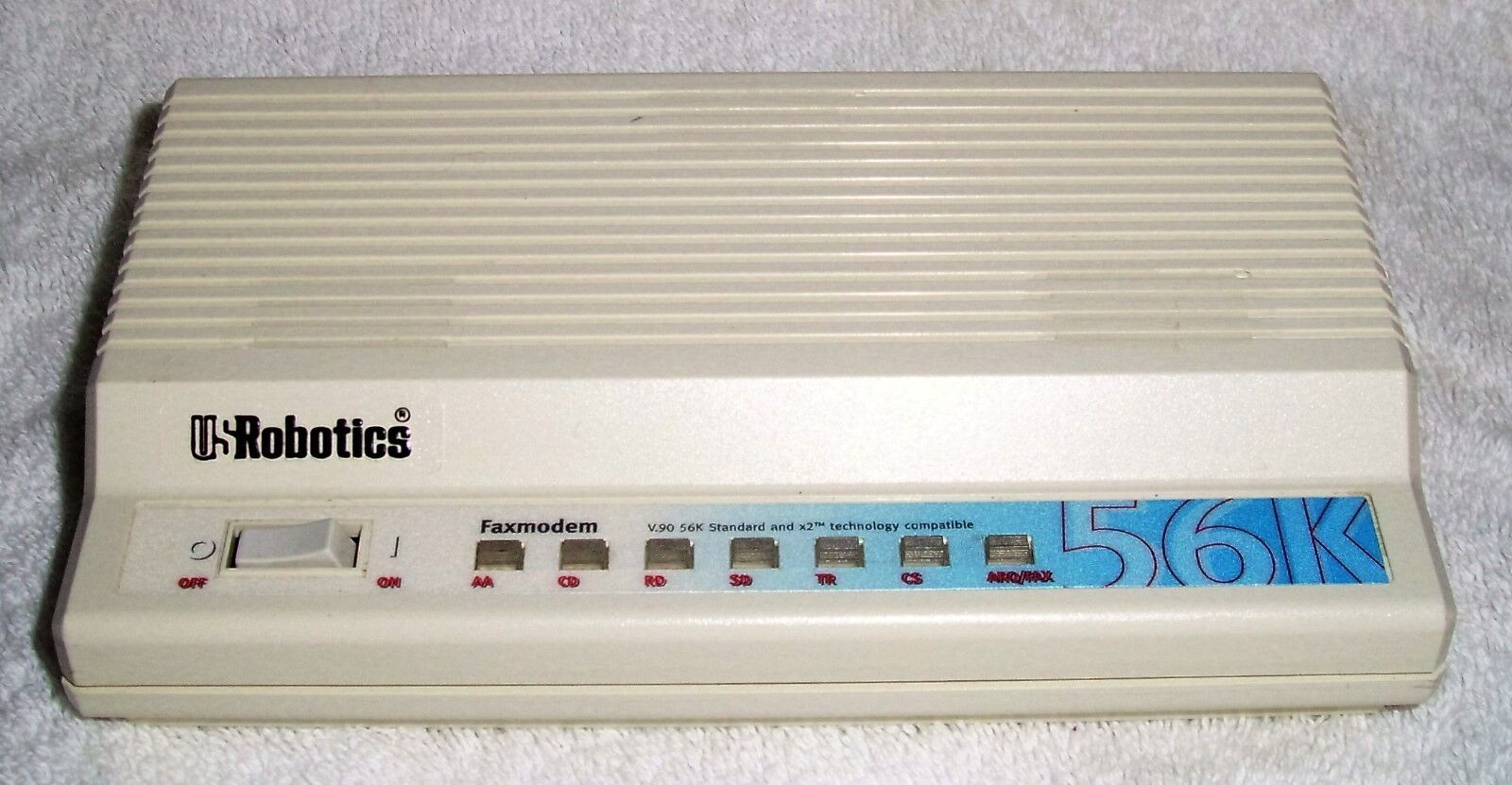

^5~13; <600W ■Pyle PCO-800;  [COMMUNICATIONS]

4W+480W+45W+(d=60)W+4W=533W+d= (593W)



N/A

N/A02

N/A

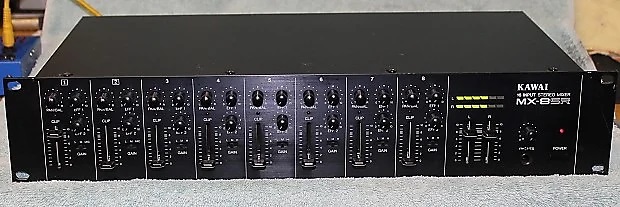

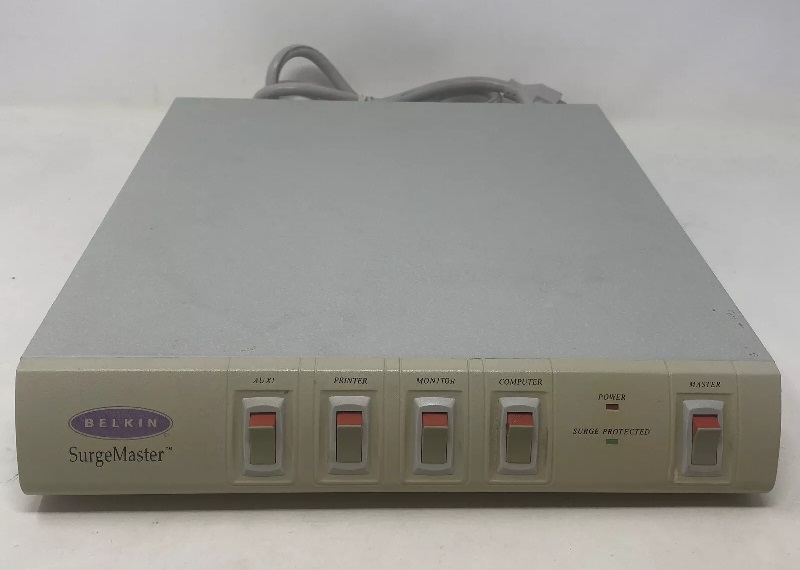

^5~7; <360W ■Belkin SurgeMaster;

73W+95W+96W+60W+73W= 397W



N/A

N/A01

N/A01

N/A01

N/A02
N/A03
N/A04
N/A05
N/A18
























































BRKR5; 1050W Net Draw
RoomA;;OL01T;~11+OL01B;~3=~271 at receptacle
RoomA;;OL02T;~13,9+OL02B;■(120V 60Hz 60W)=~660W at receptacle
RoomA;;OL03T;~7+OL03B;■(9VDC 1A est10W)=~360W at receptacle
RoomA;;OL04T;■(12V 1.5A 20Wguess)+OL04B;N/A=~20W at receptacle
RoomB;;OL01T;■(9VDC 1A (9W-GUESS)+OL01B;N/A=~10W at receptacle

BRKR7; 2100W Net Draw
RoomC;;OL03T;~1,2,10+OL03B;~8,4=~700 at receptacle
RoomC;;OL04T;~6+OL04B;N/A=~1400 at receptacle
